Paper source type and its paper capacity
Issue
Cause and Solution
This printer is supplied with two paper sources: the paper cassette (Cassette 1) and multi-purpose tray. By installing the optional paper feeder (Cassette 2), up to 3 paper sources can be used.
Paper source type:

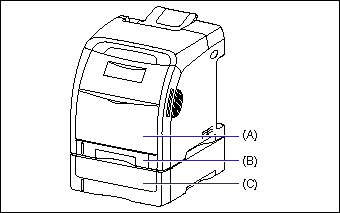

This printer has the following paper sources:
(A): Multi-purpose Tray
(B): Cassette 1
(C): Cassette 2 (Optional)
IMPORTANT
If you are printing from the multi-purpose tray or Cassette 2, make sure that Cassette 1 is set before printing. If you print from the multi-purpose tray or Cassette 2 when Cassette 1 is not set, this will cause paper jams.
Paper capacity of paper source:
| Paper Type | Paper Source | ||
| Multi-purpose Tray | Cassette 1 | Cassette 2 (Optional) | |
| Plain paper (80 g/m2) | Approx. 100 sheets | Approx. 250 sheets | Approx. 500 sheets |
| Heavy paper (128 g/m2) | Approx. 50 sheets | X | X |
| Transparency (Black and white printing only) | Approx. 50 sheets | X | X |
| Label | Approx. 40 sheets | X | X |
| Coated paper | Approx. 50 sheets | X | X |
| Envelope | Approx. 10 sheets | X | X |
