    Install Toner Cartridge

    20-thg 10-2011
    8100122500

    Giải pháp

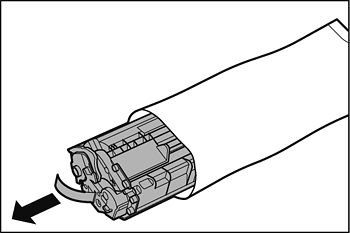

    1. Remove the toner cartridge from the bag.

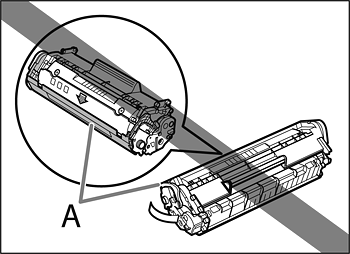

    CAUTION
    Do not open the drum protective shutter (A).

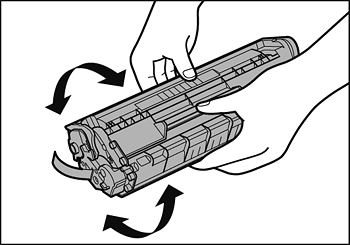

    2. Gently rock the toner cartridge several times to evenly distribute the toner cartridge.

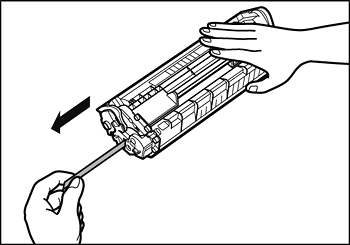

    3. Place the toner cartridge on a flat surface and pull the seal completely out.




    NOTE
    Do not pull the seal out at an angle.

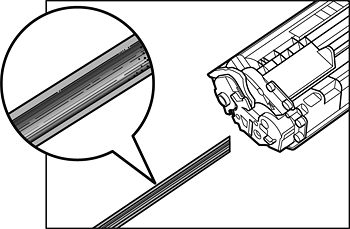

    CAUTION
    • If toner is adhered on the removed seal, be careful that your hands or clothes do not get dirty from touching the toner.
    • If your hands or clothes get dirty from touching the toner, wash them immediately in cold water. Do not use hot water. If you do, the toner may be set permanently.

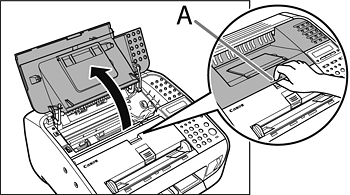

    4. Open the toner cover by the notch (A).

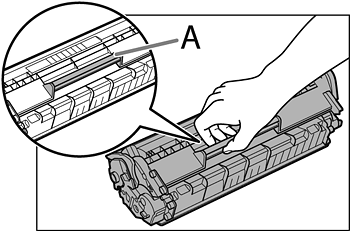

    5. Hold the toner cartridge by its handle (A).




    6. The arrow (B) on the toner cartridge should be facing away from you and pointing down.

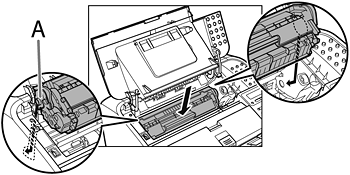

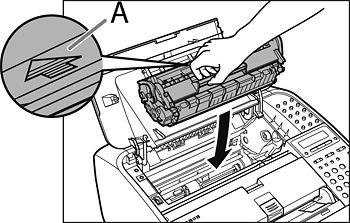

    7. Insert the toner cartridge so that the guide (A) on the left side of the toner cartridge fits into the groove inside the machine and slide it down parallel to the guide.

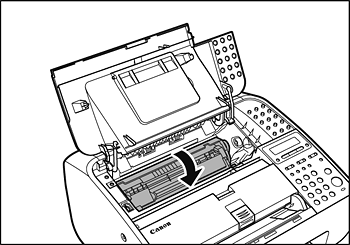

    8. Push the toner cartridge to make sure it is properly set in the machine.

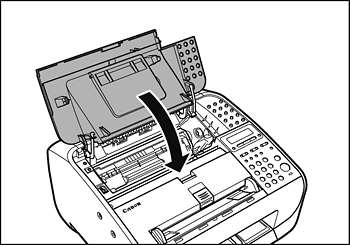

    9. Close the toner cover.




    CAUTION
    Be careful not to get your fingers caught.

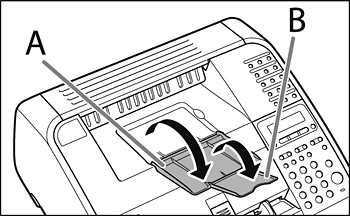

    10. Open the paper delivery tray (A) and the extension (B).
